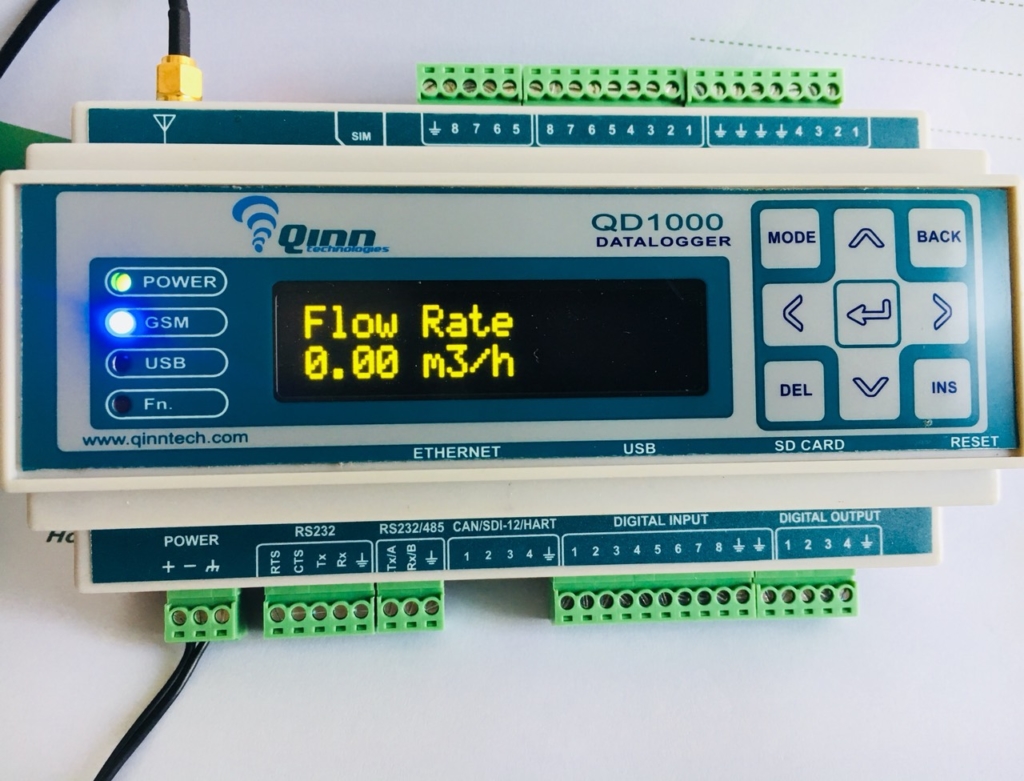

DATA LOGGER

• Application:

– Weather Station Monitoring Enviroment
– Monitoring Industrial Automation
– Remote Monitoring for Windmills

• Salient Features:

– 8 High accuracy Analog Inputs (4-20mA)
– 8 Digital Inputs and 8 Digital Outputs
– RS232 and RS485 ports for data acquisition
– 16×2 OLED display with 3×3 keypad
– Upto 64 MB serial Flash and Upto 16K FRAM
– Upto 32GB SD card and USB pen Drive support
– Supports TCP, HTTP and FTP protocols for data communication
– Configurable automation Logic for Digital Outputs

• Hardware Specifications:

– ARM Cortex M4 Processor with:

• • 120 MHz clock speed :150 DMIPS performance
  • 1MB Flash and 256KB single-cycle System SRAM
  •  6KB of EEPROM
  • 10/100 Ethernet MAC and PHY with IEEE 1588 PTP hardware support
  • Watchdog timer

– Storage:

• • 16MB Serial Flash (Expandable upto 64MB)
  •  2KB FRAM (Expandable upto 16KB)
  • SD Card upto 32 GB

– Analog Ports:

• • 8 Number of Analog Inputs

– Digital Inputs & Outputs:

• • 8 Number of Digital Inputs
  • 8 Number of Digital Outputs

– Communication Ports:

• • One RS232 port
  • One RS485 Port
  • One USB port
  • One Ethernet port (RJ45)

– 16 x 2 OLED display
– 3 x 3 Keypad
– GSM/GPRS Module Specifications

• • Built in ARM processor with Opencpu support
  • GSM 850/900/1800/1900MHz GPRS Class 10
  • Operating Temperature：-40 ~ +85c
  • Sensibility：-109dBm(850/900MHz); -108dBm(1800/1900MHz)
  • Sleep mode for low power consumption

• Firmware features:

– Data Capturing:

• • Monitor Analog and Digital Inputs and log captured data
  • Monitor serial ports and log data received at the serial port.
  • Act as a master device and capture data from one or more devices connected to RS232/RS485 ports.
  • Supports standard protocols like MODBUS or proprietary protocols for master slave communication.

– Data Logging:

• • Highly reliable serial flash which can store up to 64 MB of data
  • SD card which can store up to 32 GB of data
  • Store data for different intervals in different files in SD card
  • Copy data to external USB drive

– Automation, Remote Control and Remote Monitoring:

• • Simple configurable logic for each Digital Output based on time, week day, Analog Input values and status of Digital Inputs/Outputs
  • Remote operation of Digital Outputs using SMS Commands or commands from server using HTTP/TCP responses
  • Generation of alerts on changes of Digital Inputs/Outputs and/or when crossing threshold limits of Analog Values
  • Sending SMS messages to one or more numbers and/or messages on each alerts

– Data Communication:

• • Communicate data to the external world through Ethernet port or through GSM/GPRS network.
  • Supports various protocols like TCP/IP, HTTP, FTP.

– Configuration:

• • Windows utility to configure the logger through serial port
  • Configure through browser by connecting it to a LAN or directory to the PC through Ethernet port
  • Configure parameters by simple SMS commands from Authorised Numbers
