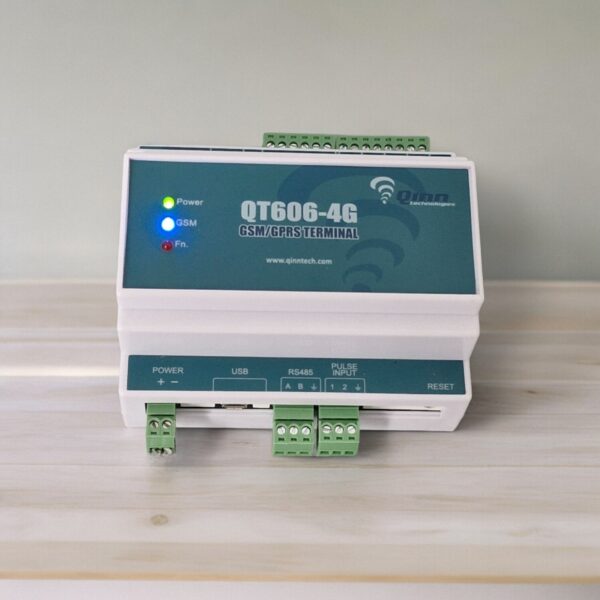

GSM/GPRS TERMINAL DATA LOGGER QT606 (QINN – INDIA)

GSM/GPRS TERMINAL DATA LOGGER QT606 (QINN – INDIA

Application

– Remote Monitoring and Data acquisition from flow meters
– Data acquisition from remote devices one or more remote MODBUS Clients
– Remote automation and control

Salient Features

– Analog inputs for instantaneous monitoring
– Pulse counters,Digital Inputs and Digital outputs
– RS232 and RS485 ports for data acquisition
– Support TCP/IP, HTTP and FTP protocols for data communication
– Supports MQTT protocol for M2M communications
– Customisable firmware
– High reliability and Low power consumption

Hardware Specifications

Four Analog Inputs, Configurable as 4-20mA or 0-10V
– Two Pulse inputs, 5 GPIOs configurable as Digital inputs or Digital Outputs
– One RS232/TTL UART , One RS485/TTL UART(Optional)
– 12-24V DC input power
– Sleep mode for low power consumption
– Din Rail mountable enclosure
– GSM 850/900/1800/1900MHz
– Operating Temperature： -40 ~ +85°C

Firmware features

Continuous monitoring of pulse inputs and maintaining counters.
– Continuous monitoring of analog inputs and Digital Inputs and generation of alerts
– Log up to 15,000 records
– Server Communication using protocols like TCP,HTTP or FTP
– Can support MQTT protocol for M2M applications
– Communication of data to server based on specific events or on configured intervals
– Storing and forwarding of data in case of communication failures
– Programmable automation of DO operations by giving simple conditions for time, week day, DI status etc…
– Operation of Digital output via SMS commands or commands from server
– Supports standard protocols like MODBUS or proprietary protocols on RS232/RS485 ports
– Configuration of parameters via serial port or remotely by SMS or from the Server
– Low power mode for power saving
– Over the air updation of firmware
